Loading Setup Macro M6
m6-CL-INIDCATORtest_20180228.gsbmacro has been provided to populate all the settings we need other than the data settings.
Since we will be loading the file into M6 we first want to clear any macro we have loaded in M6.

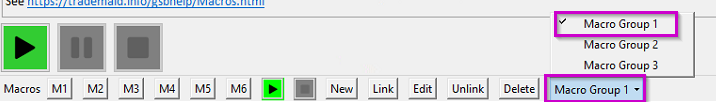

To do this first make sure we have selected Macro Group 1 by clicking the bottom Macro Group button and select Macro Group 1
We then put the mouse cursor over the M6 button on the bottom line and right click the mouse to clear any macro already loaded in M6
The M6 line in the Macros section on the left-hand column should now be blank

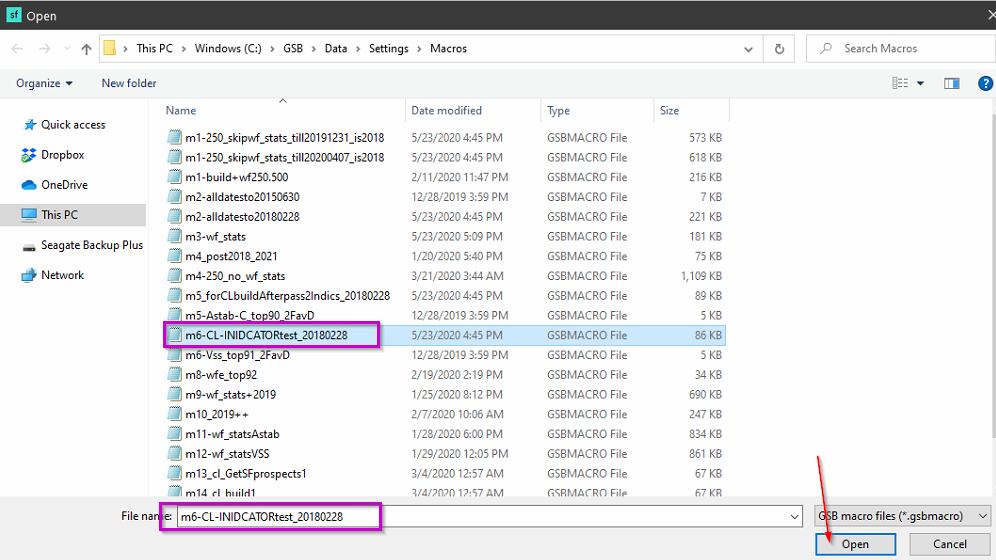

To load the M6 macro file we place the cursor over the M6 button on the bottom of the window and left click the mouse.
This displays a list of macros in the default macros folder. Select the m6-CL-INIDCATORtest_20180228.gsbmacro file and click Open
You should now see the macro displayed on the M6 Macros file line in the Macros section
We now run the macro by left clicking the mouse on the M6 button at the bottom of the page.
And then clicking the macro run green icon just the the right of the M6 button.

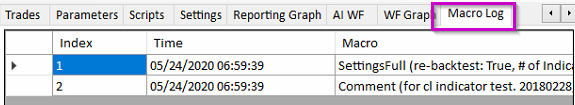

The Macro Log panel should display indicating the macro ran.
This has now populated the optimization setting.
